Cement Coated XPS300 Overlay Board
£12.70 (inc.VAT)Cement coated low profile overlay boards are perfect for retrofit installation over concrete and wooden subfloors.
- Low profile – 20mm thick
- Holds 16mm pipe at 150mm spacing
Discover our low profile heating panels for wet underfloor heating. Panels are 20 mm thick and are designed to accommodate 16mm pipes. We also offer transitional panels for areas with higher density requirements. Complete your installation with our range of adhesives suitable for attaching the panels to any solid floor.
Showing all 12 results
-
-
XPS 400 Low Profile Overlay Board
£11.35 (inc.VAT)XPS400 overlay boards are used to install underfloor heating onto existing floor surfaces. These panels can be secured to a solid subfloor and are perfect for retrofit installations.
- Low profile – 20mm thick
- High compressive strength of 400KPA
- Holds 16mm pipe at 150mm spacing
- 200-micron aluminium coating
- 600mmx1200mm
*PLEASE NOTE: THIS PRODUCT HAS A MINIMUM ORDER QUANTITY OF 10 BOARDS*
-
XPS 500 Underfloor Heating Overlay Boards – Super High Output 120mm
£11.35 (inc.VAT)The NEW XPS 500 underfloor heating overlay boards offer a simple solution to install underfloor heating onto existing floors. These panels can be placed directly onto any solid surface and are perfect for retrofit installations. These boards feature performance benefits over the standard EPS Overlay Boards.
- Light bulb returns
- Foil is fitted into main grooves
- 200 micron foil
- 120 mm pipe centres
- Used with all floor coverings
**PLEASE NOTE: THIS PRODUCT HAS A MINIMUM ORDER QUANTITY OF 10 BOARDS**
-
Transitional Low Profile Overlay Board – XPS 400
£12.48 (inc.VAT)- 1200mm x 600mm boards
- Easy to cut and quick to install
- Covers 0.72m²
- 20mm thickness
- 16 Channels (Grooves)
- Strong 400 kPa compressive strength
**PLEASE NOTE: THIS PRODUCT HAS A MINIMUM ORDER QUANTITY OF 10 BOARDS BUT THIS CAN INCLUDE XPS400 AND XPS500FOILED BOARDS**
-
XPS400 Low Profile Overlay Boards Blank
£8.28 (inc.VAT)- Solid XPS400 Board
- 1200mm x 600mm
- 20mm thickness
- Easy to cut and quick to install
- Strong 400 kPa compressive strength
**PLEASE NOTE: THIS PRODUCT HAS A MINIMUM ORDER QUANTITY OF 10 BOARDS BUT THIS CAN INCLUDE XPS400 AND XPS500FOILED BOARDS**
-
Foil Faced In Joist/Batten Panels
£11.50 (inc.VAT)These EPS panels are designed to fit snugly between existing joists or between battens on concrete subfloors. In joist panels are 1200 mm x 350 mm x 50 mm, with 200 mm pipe spacing for 16 mm pipework. These panels provide insulation to prevent heat loss while the foil coating promotes an even heat distribution across your space. Once installed, floorboards are placed over the joists/battens as normal.
**PLEASE NOTE: THIS PRODUCT HAS A MINIMUM ORDER QUANTITY OF 55 BOARDS**
-

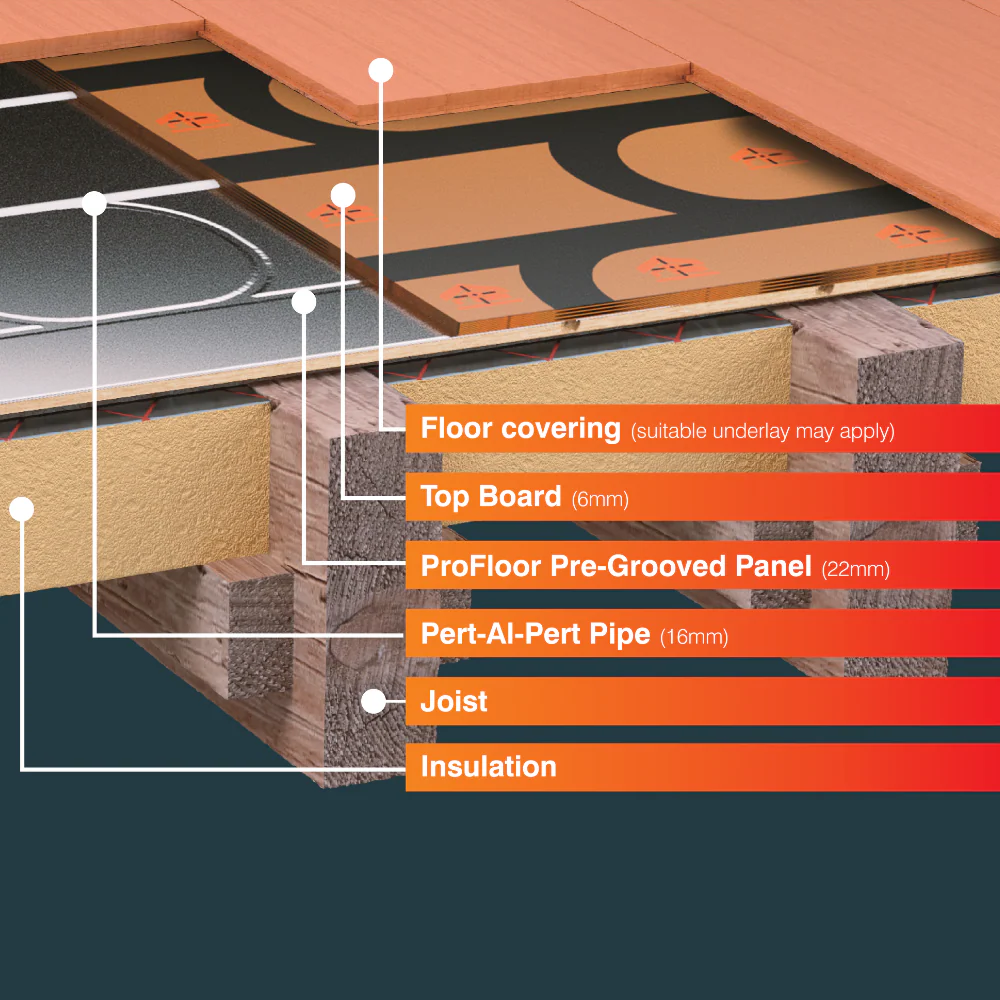

Profloor Pre-Routed Foil OSB Board
£26.40 (inc.VAT)- 22mm-thick OSB3 board; 1200 x 600mm
- 75-micron aluminium foil surface
- 150mm spacing
-
Profloor HDF Top Board
£12.00 (inc.VAT)- 6mm thick board, 1200x600mm
- High Density Fibreboard
- Printed pipe pattern (150mm spacing)
-
Quick Drying Adhesive Canister (For Polystyrene) 13Kg
£252.00 (inc.VAT)Quick Drying Adhesive Canister – 13 kg. Used with a spray gun to secure EPS underfloor heating boards to any solid surface.
Up to 200m² coverage!
-
Spray Gun & Hose Set
£216.00 (inc.VAT)Adhesive spray gun and hose set. For use with 13kg quick-drying adhesive canisters (sold separately). Ideal for securing EPS underfloor heating boards.
-
EPS Board Spray Bonding Adhesive
£7.25 (inc.VAT)500ml can (covers 5m2).
Used to bond overlay boards to the floor.
-
Sale!
EPS 400 Low Profile Overlay Floor Panel 100 Micron
Original price was: £13.20.£11.35Current price is: £11.35. (inc.VAT)Replaced by superior xps400 boards*
The EPS 400 low profile overlay floor panel (1200mm x 600mm x 20mm) offers a simple solution to install underfloor heating into your home without the need to uplift your floor. The panels can be placed directly onto the existing concrete, floorboards or solid flooring and are a perfect choice for retrofit installations.
We also offer 200 Micron Floor Panels.
They are suitable for laminate, carpet, tiles, vinyl and engineered wood. With a minimal height increase of just 20mm and a high compressive strength of 400KPA they are very lightweight meaning they are simple to fit and are easily installed.
**PLEASE NOTE: THIS PRODUCT HAS A MINIMUM ORDER QUANTITY OF 10 BOARDS**
