Fill out our quick and easy form below and receive your personalised underfloor heating quotation.
Quote within 24hr
Quick UK Delivery
Start your Underfloor
Heating Project Today
Get a detailed cost of underfloor heating, our team of design experts are on hand to create your underfloor heating quotation.

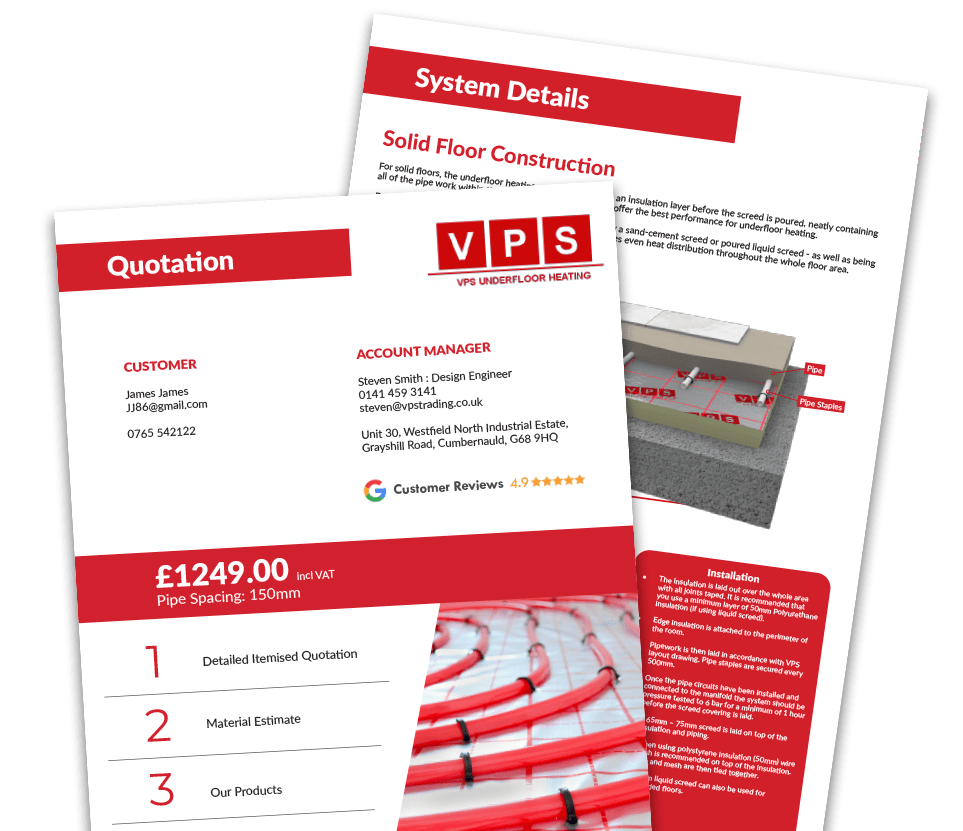

In just 24 hours we provide you with a detailed itemised quotation, material estimate, and further details about our products and your new system.
Design Service included

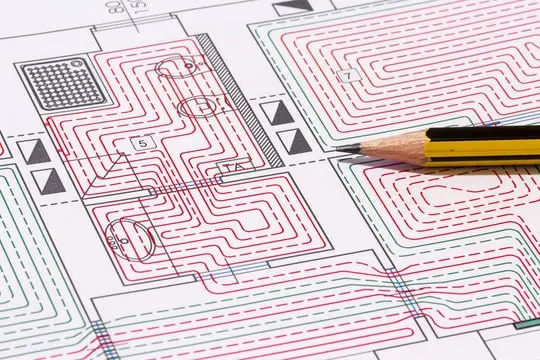

On receipt of your order, our team will produce a CAD pipe layout design for your project. This is printed and dispatched with your underfloor heating equipment. Additionally, we can also supply a PDF version on request.
Underfloor heating Quotation Form
Send us a plan of the area which requires heating, along with as much detail as possible.
We will provide a quotation within 24 hours.
How To Get StartedThere are many things to consider when designing an underfloor heating system and our team are happy to advise. Here’s a quick summary of things to consider to allow you to understand your underfloor heating quotation.
Select the rooms you intend to heat and then identify heated and unheated areas. If you don’t have a CAD drawing then a sketch will be sufficient, but make sure to include all measurements including doorways & unheated areas. The size of area will affect the overall cost of underfloor heating.
Evaluate the insulation to ensure it meets current regulation standards, as adequate insulation is crucial for maintaining warmth and ensuring energy efficiency.
Consider the subfloor upon which the UFH system will be installed, as this will determine which system is best for your project.

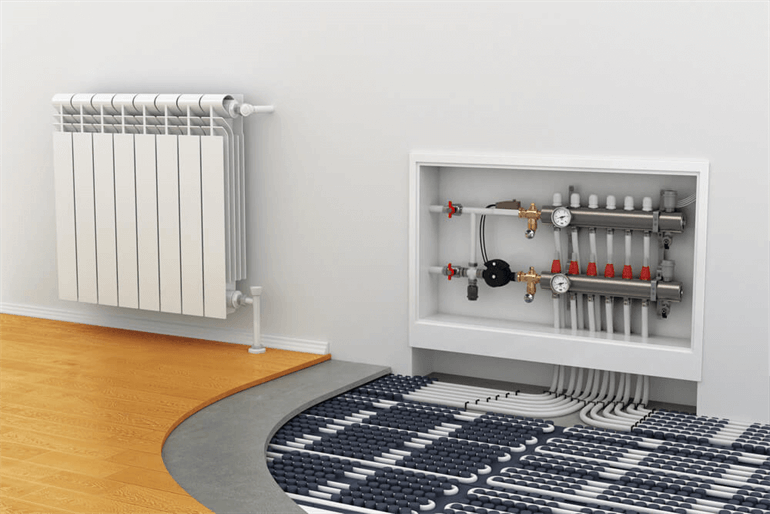

The manifold should be positioned centrally in the property such that distribution to each heated area is efficient. It should be ensured that copper pipework to and from the boiler can reach the designated manifold location, and the manifold itself should be easily accessible for maintenance, adjustments, and potential repairs.
Pipe spacing will vary depending on heat source, property insulation and heating requirements. Our staff are on hand to provide guidance if you are unsure. Here is a rough guide below,
• Passive house – 300mm
• Good Insulation or Gas Boiler – 150mm/200mm
• Poor Insulation or Heat Pump – 100mm/150mm
Pipe Loop Length
If a given underfloor circuit exceeds a certain length, it can suffer from performance issues, so it is better to use two or more loops in a larger space instead of one continuous loop. All pipe lengths will be clearly stated on the final design.

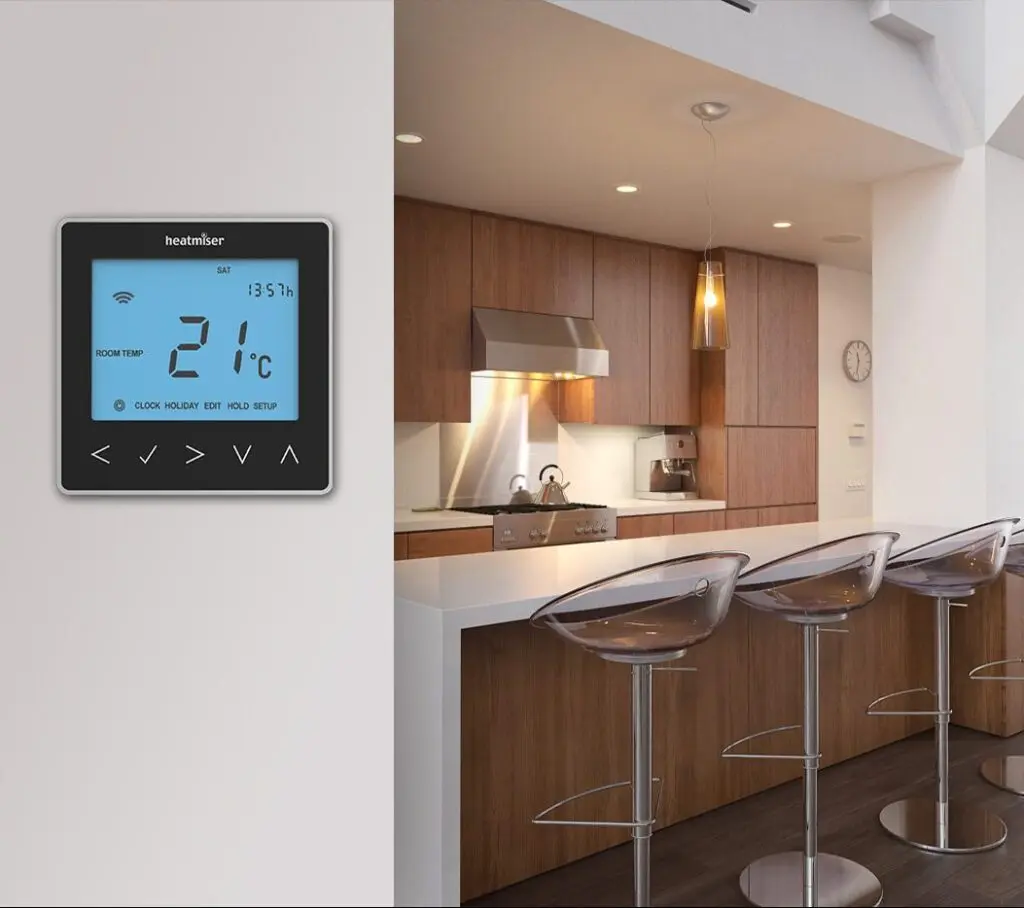

Thermostats control your system by monitoring the air temperature and sending a corresponding signal to the control components. Our range includes wired, wireless, and 12V systems from trusted brands such as Salus, Heatmiser, and ProWarm.
We supply a range of equipment which uses smart technology, providing seamless control and energy efficiency and allowing you to manage your underfloor heating from anywhere. These control systems can be extended to control other devices in your home, including lighting and sockets. Additionally, they will integrate with most popular smart home apps such as Google Home, Alexa and Apple HomeKit.
Floor covering can affect the performance of underfloor heating systems. The designs we produce will provide information on the relative heating outputs depending on what floor covering is used.
VPS design engineers use CAD software to produce accurate pipe layouts and heat output calculations based on different floor surface materials, flow rates and pipe allocation. Our expert designers are fully qualified and experienced, and will ensure that all calculations, pipe allocations, pipe spacings, pipe layouts, flow rates and heat outputs are tailored to your property.
Why choose VPS Underfloor Heating?

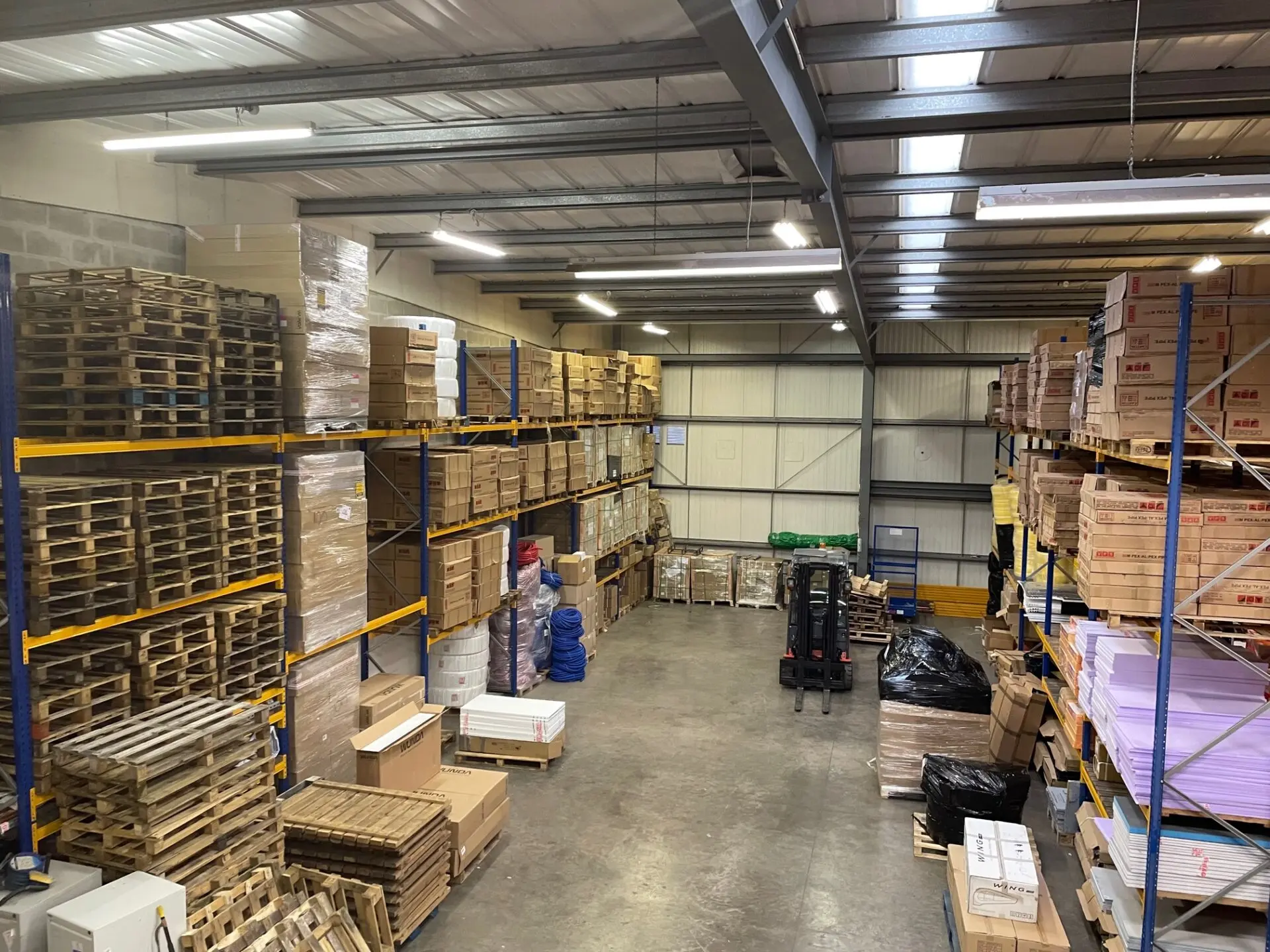

Located just outside of Glasgow, our warehouse is well stocked with a wide array of heating products & components. This eliminates waiting times, allowing you to complete your projects efficiently and on schedule. Next day delivery is also available.
We make a special effort to assist customers wherever possible, so whether you are an experienced installer or attempting your first DIY project we give you as much support as we can throughout and after your ordering process.
At VPS we pride ourselves on being more than just a supplier; we are your trusted heating experts. With years of industry experience and a team of knowledgeable professionals, we are always on hand to provide guidance.
Due to solid relationships with our suppliers, we stock and supply the highest quality brands and materials to ensure satisfaction for the end user, while keeping a thee cost of underfloor heating competitive.
