EPS 400 Low Profile Overlay Floor Panel 100 Micron

£12.54 (inc.VAT)

The EPS 400 low profile overlay floor panel (1200mm x 600mm x 20mm) offers a simple solution to install underfloor heating into your home without the need to uplift your floor. The panels can be placed directly onto the existing concrete, floorboards or solid flooring and are a perfect choice for retrofit installations.

We also offer 200 Micron Floor Panels.

They are suitable for laminate, carpet, tiles, vinyl and engineered wood. With a minimal height increase of just 20mm and a high compressive strength of 400KPA they are very lightweight meaning they are simple to fit and are easily installed.

Download Data Sheet

VPS Underfloor Heating

  • Check Mark Secure Payments
  • Check Mark No Hassle Returns Policy
  • Check Mark Trade Customers Welcome
PAY WITH CONFIDENCE
  • Visa Card
  • MasterCard
  • PayPal
Product Code: N/A SKU: EPS400-100M Categories: , Tag:

EPS 400 Low Profile Overlay Floor Panel

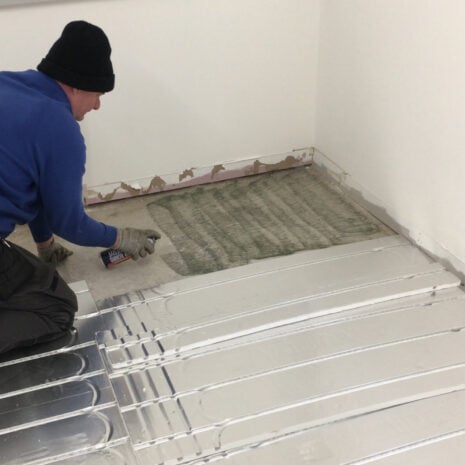

The EPS 400 low profile overlay floor panel (1200mm x 600mm x 20mm) offers a simple solution to install underfloor heating into your home without the need to uplift your floor. The panels can be placed directly onto the existing concrete, floorboards or solid flooring and are a perfect choice for retrofit installations.

They are suitable for laminate, carpet, tiles, vinyl and engineered wood. With a minimal height increase of just 20mm and a high compressive strength of 400KPA they are very lightweight meaning they are simple to fit and are easily installed.

The 20mm panels uses a 16mm pipe at 150mm pipe spacings. The panels should be secured with adhesive and can be laid onto any existing, level flooring.

EPS panels are made from high compressive strength Expanded PolyStyrene (EPS). EPS400 is the strongest density available today and can be used with all floor coverings. The panels are also fitted with 100 micron thick aluminium foil, allowing the floor to heat in 45 mins. Thinner aluminium foil layers makes heat up times much longer.
