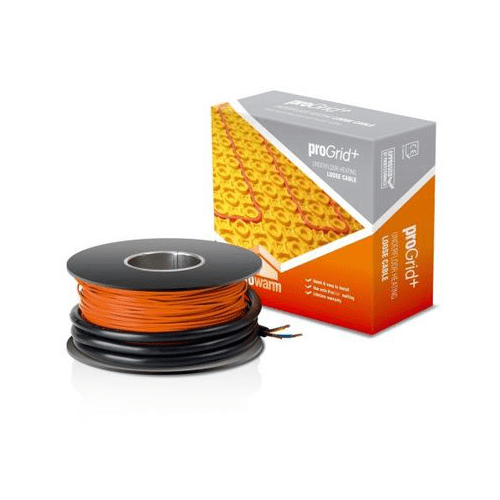

ProWarm™ ProGrid+ Cable

£57.59£417.59 (inc.VAT)

ProWarm™ ProGrid+ Cable Electric Underfloor Heating systems provide a reliable and effective underfloor heating system that can work with tiles and many other floor coverings (installation methods differ, please call us for advice).

Don’t forget to click here to order your ProWarm ProGrid+ Matting (1000mm x 1000mm) once you have chosen your cable length



Clear

Description

Description

ProWarm™ ProGrid+ Cable Electric Underfloor Heating systems provide a reliable and effective underfloor heating system that can work with tiles and many other floor coverings (installation methods differ, please call us for advice).

Don’t forget to click here to order your ProWarm ProGrid+ Matting (1000mm x 1000mm) once you have chosen your cable length







Tech Specs

Tech Specs

Resistance Values

Twin Conductor 13.7W / m / 230 VOLTS

Length (M) Watts (W) Resistance (Ohms)
10.9 150 352.67
16.4 225 235.11
21.9 300 176.33
27.4 375 141.07
32.8 450 117.56
38.3 525 100.76
43.8 600 88.17
49.3 675 78.37
54.7 750 70.53
65.7 900 58.78
76.6 1050 50.38
87.6 1200 44.08
98.5 1350 39.19
109.5 1500 35.27
131.4 1800 29.39
153.3 2100 25.19
175.2 2400 22.04

Cable Coverage Guide

Cable Coverage Guide

Cable Coverage Guide

Product Code Cable length (m) 185w/m2 140w/m2 115w/m2
75mm 75mm/125mm 125mm
PROGRIDCABLEONLY1.0 10.9 0.82 1.09 1.36
PROGRIDCABLEONLY2.0 21.9 1.64 2.19 2.74
PROGRIDCABLEONLY3.0 32.8 2.46 3.28 4.10
PROGRIDCABLEONLY4.0 43.8 3.29 4.38 5.48
PROGRIDCABLEONLY5.0 54.7 4.10 5.47 6.84
PROGRIDCABLEONLY7.0 76.6 5.75 7.66 9.58
PROGRIDCABLEONLY9.0 98.5 7.39 9.85 12.31
PROGRIDCABLEONLY12.0 131.4 9.86 13.14 16.43
PROGRIDCABLEONLY16.0 175.2 13.14 17.52 21.90
PROGRIDCABLEONLY1.5 16.4 1.23 1.64 2.05
PROGRIDCABLEONLY2.5 27.4 2.06 2.74 3.43
PROGRIDCABLEONLY3.5 38.3 2.87 3.83 4.79
PROGRIDCABLEONLY4.5 49.3 3.70 4.93 6.16
PROGRIDCABLEONLY6.0 65.7 4.93 6.57 8.21
PROGRIDCABLEONLY8.0 87.6 6.57 8.76 10.95
PROGRIDCABLEONLY10.0 109.5 8.21 10.95 13.69
PROGRIDCABLEONLY14.0 153.3 11.5 15.33 19.16
