Home » Wet Underfloor Heating Insulation Panels » Foil Faced In Joist/Batten Panels

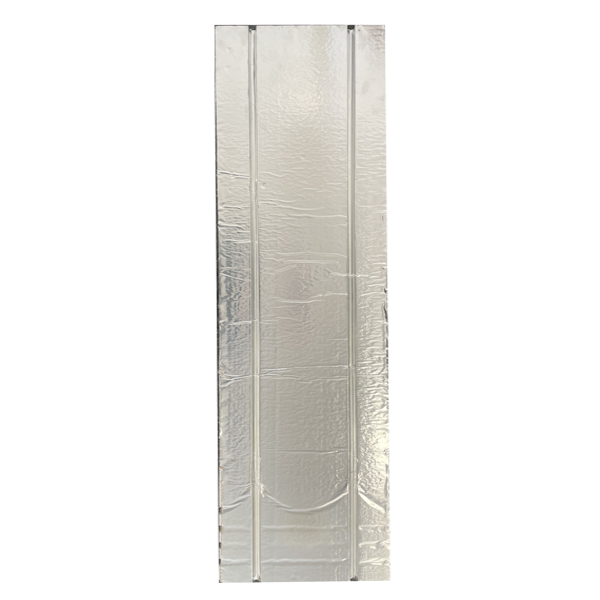

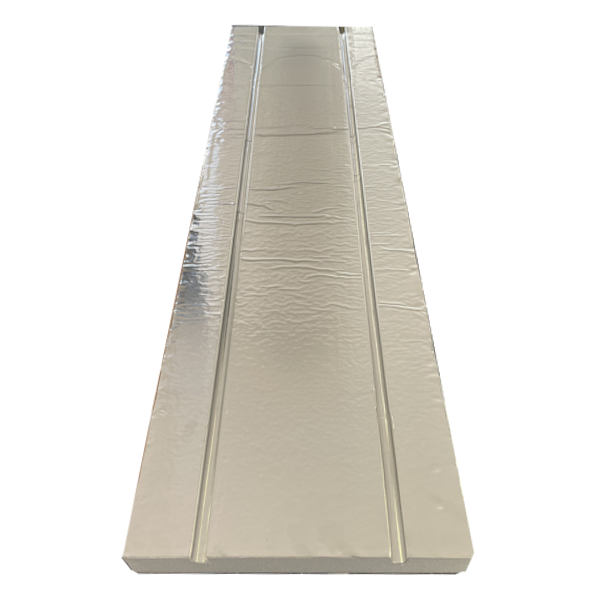

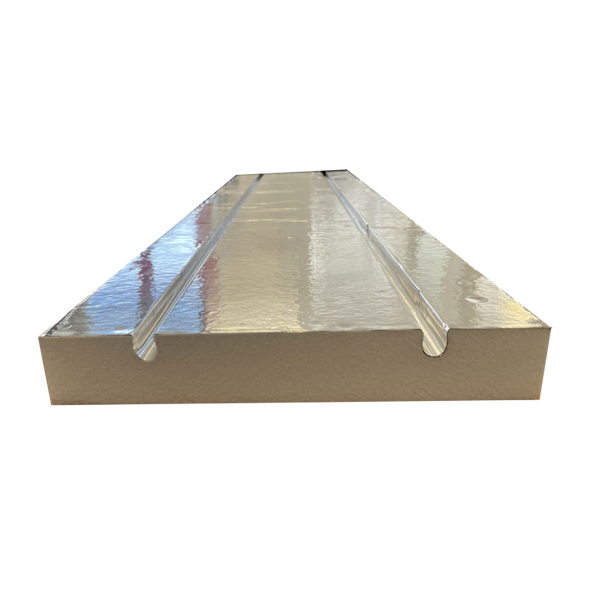

Foil Faced In Joist/Batten Panels

£9.48 (inc.VAT)

These EPS panels are designed to fit snugly between existing joists or between battens on concrete subfloors. In joist panels are 1200 mm x 350 mm x 50 mm, with 200 mm pipe spacing for 16 mm pipework. These panels provide insulation to prevent heat loss while the foil coating promotes an even heat distribution across your space. Once installed, floorboards are placed over the joists/battens as normal.

**PLEASE NOTE: THIS PRODUCT HAS A MINIMUM ORDER QUANTITY OF 10 BOARDS**



VPS Underfloor Heating

  • Check Mark Secure Payments
  • Check Mark No Hassle Returns Policy
  • Check Mark Trade Customers Welcome
PAY WITH CONFIDENCE
  • Visa Card
  • MasterCard
  • PayPal

Foiled Faced In Joist/Batten System. These panels are designed to fit between existing joists onto battens or between battens on concrete subfloors. Measuring 350mm in width they fit a 400 mm joist spacing (Joists 50 mm). They feature grooves at 200 mm spacing which hold 16 mm pipework.

The solid EPS construction provides insulation reducing downward heat loss. Panels are foil-coated which promotes even heat distribution when in contact with the underside of the wooden flooring.

These in-joist boards are simpler to install than other in-joist underfloor heating methods. Removing the need for separate spreader plates and insulation systems reduces costs and allows quicker installation. There is also no increase in floor height, allowing flooring to be placed on top of joists as normal.

Specifications

  • Dimensions: 1200mm x 350mm x 50mm
  • Pipe Spacing: 200mm
  • Pipe Compatibility: 16mm
  • Material: Expanded Polystyrene (EPS) with foil facing

Key Features

Easy Installation: Designed to fit between 400mm centre joists.
Versatile Use: Suitable for existing joists and battens on concrete subfloors, providing flexibility.
Effective Insulation: Crafted from EPS, offering top-notch thermal insulation to boost energy efficiency.
All-in-One Solution: Eliminates the need for separate spreader plates and insulation systems, simplifying installation and cutting costs.

*PLEASE NOTE: THIS PRODUCT HAS A MINIMUM ORDER QUANTITY OF 10 BOARDS*

You may also like…

  • 16mm underfloor heating pipe PEX AL PEX, 500m coil

    WRAS Approved Underfloor Heating Pipe PEX AL PEX – 100m

    £77.28 (inc.VAT)
    Add to basketLoading Done
  • 2 port underfloor heating manifold

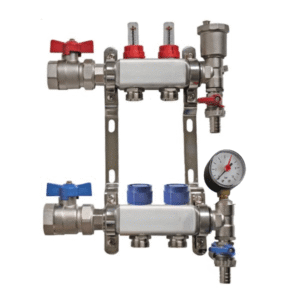

    Underfloor Heating Manifolds c/w Iso Valves, Taconova Flow Meters, Gauges, Fill & Drain Points
