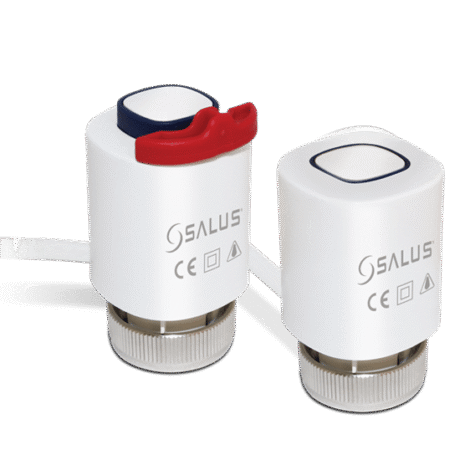

Salus T30NC230 – Electro Thermal Actuator
£12.50 (inc.VAT)
Salus T30NC230 – Electro Thermal Actuator
Thermal actuator for energy saving, used to regulate surface heating and cooling systems.
VPS Underfloor Heating
- Secure Payments
- No Hassle Returns Policy
- Trade Customers Welcome
Salus T30NC230 underfloor heating actuators are used to regulate surface heating and cooling systems. It is a vital element of your underfloor heating system. The actuator opens and closes the valve on the underfloor manifold. This is operated by the signal sent by your wet underfloor heating Thermostat. The actuator is often wired to a wiring centre if the system has multiple zones. Actuators increase energy efficiency by controlling each loop independently. This caters to varying heating needs in different zones.
Features
- First open function for easy installation
- Adaptive stroke length of 4mm
- Low power consumption at 2W
- 100N force for effective operation
- High-quality wax element for reliability
- Simple open and close indication
- Universal M30 x 1.5mm screw thread
- Power Supply Type: 230V
- Warranty: 5 years
- Size (mm): 40 x 60 x 42
Installation
Below are the steps to connect your actuator to a VPS manifold.
- The Salus T30NC230 is fitted on the return section of the manifold. Placed above each return port for individual control.
- Remove the blue flow cap and expose the valve.
- The actuator comes with a threaded ring nut attached to the bottom. Place the unit onto the valve and screw the ring nut onto the valve thread.
- Connect the wiring from the actuator to the appropriate control source. This is often wired from the thermostat or a central wiring centre. This connection powers the unit.
- After completing the installation, remove the red tab which holds the control unit open. Perform a system test to ensure the actuator responds correctly to control signals. By following these steps, you can successfully fit an actuator onto your underfloor heating manifold. this will provide individual control and efficient operation for your heating system.
Check out our full range of actuator controls including auto-balancing and 24-volt alternatives.
