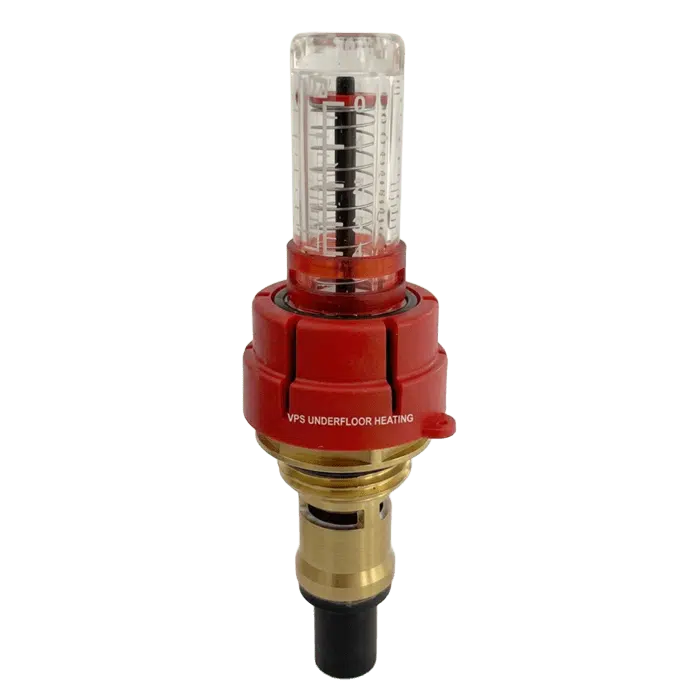

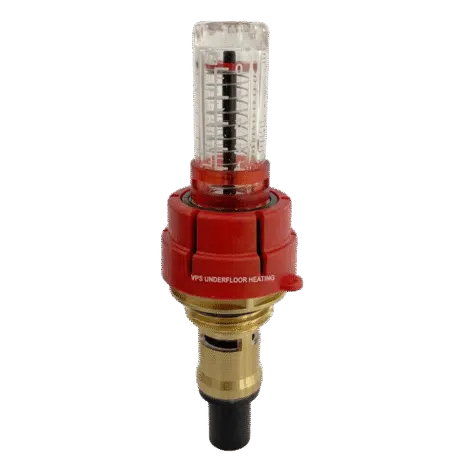

The Taconova flowmeter offers an easy and accurate method of adjusting the flow rates in heating and cooling circuits. Correct balancing of circuits ensures optimum energy distribution, resulting in more efficient and economical operation.

Underfloor heating manifold flowmeters can regulate, indicate and shut off flow in each loop on the supply bar. Each loop requires a flow meter installed on the manifold.  Flowrate is easily measured from the scale printed on the glass. Turning the black spindle changes the opening profile of the valve and allows the desired flow rate to be set. The flow is isolated by turning the spindle fully.

Taconova is a global leader in providing heating and plumbing solutions. Their products are renowned for their high quality, making them a trusted choice for professionals worldwide. Our VPS manifolds come with Taconova Flowmeters fully installed as standard.

Benefits

• Precise and quick balancing
• Flow rate displayed directly in l/min
• Regulating valve with isolating facility
• Removable sight glass available as a replacement part
• Can be installed in any position

Specification

• Flow rate : 0 – 5,0 l/min
• Medium temperature: -5 °C – +60 °C
• Operating pressure PO max : 6 bar
• Measuring accuracy: ±10%
•  External thread ½”
• Material: Brass, Heat-resistant plastics and stainless steel
  Seals: EPDM

Taconova Flow Meter Data Sheet Taconova Flow Meter installation
