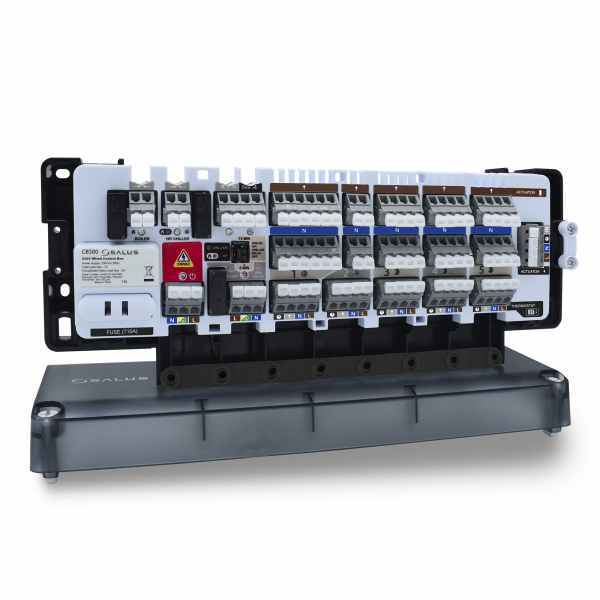

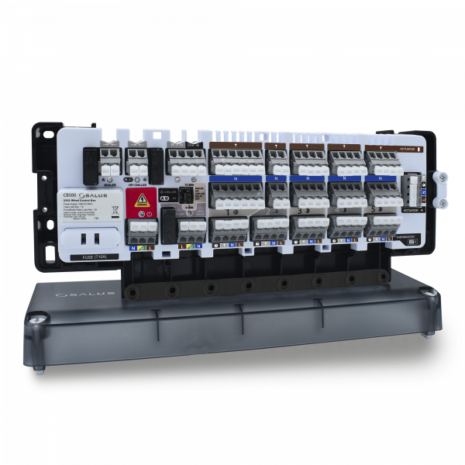

Salus CB500 – 5 Zone Hard Wired Control Box with pump/boiler/chiller module

Control box / Wiring centre (5 zones) 230v

The Salus CB500 control box is the main element of the underfloor heating / cooling control system. It has a built-in module that controls the heat and cool sources. The control box allows to control 5 different zones. Number of controlled zones can be increased up to 15 zones by using additional CB500X extension modules (CB500 main control box + two CB500X extension modules).  The CB500 has voltage-free outputs designed to control a boiler, heat pump or chiller. It allows you to switch between heating and cooling modes. It is equipped with 230V voltage outputs for a pump and actuators. The spring clamps provide quick and convenient wiring connections. The control box is designed to work with NC (normally-closed) type actuators.

Product features:

• Control of 5 independent zones
• Heat pump control
• Heating and cooling modes
• Advanced boiler, chiller and pump control modules
• Quick installation with the spring clamps terminals
• Wires protection against pulling out
• Compatible with CB500X control box extension
• Surface mounting or on DIN rail
