Profix Plus Low Profile System for 12mm Pipe

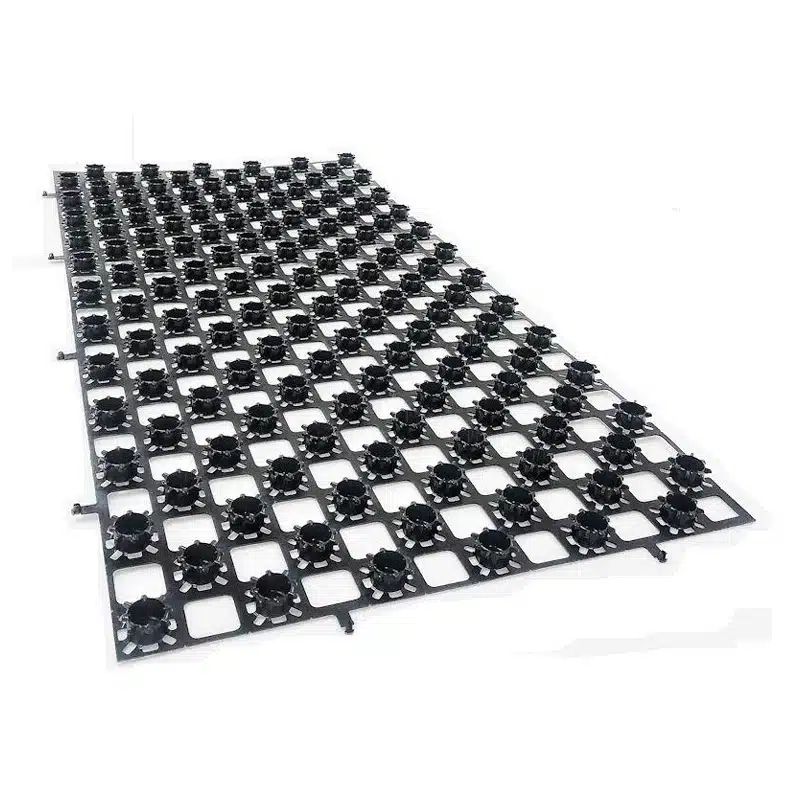

The Profix® PLUS Low Panel is a premium underfloor heating panel engineered for high-output performance and rapid installation. Patented to accommodate 10–12mm diameter pipe, it’s ideal for new builds and energy-efficient retrofits alike.

At just 16mm thick, the Profix® PLUS is one of the slimmest UFH panels available. Manufactured in the UK from 100% recycled plastic, it supports sustainable building practices without compromising on performance. The low-profile design is compatible with self-levelling screed as thin as 20mm.

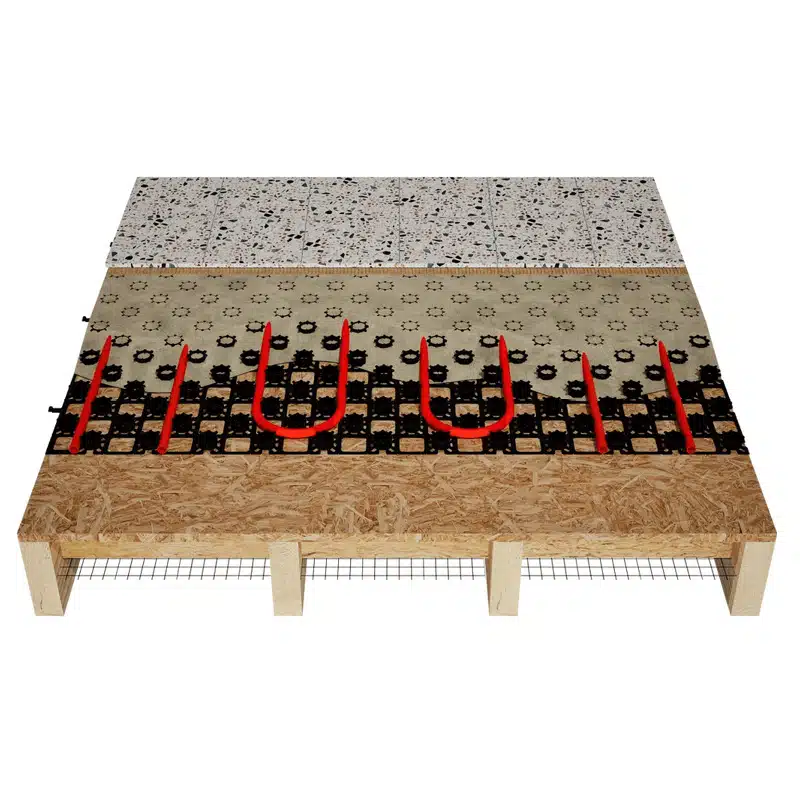

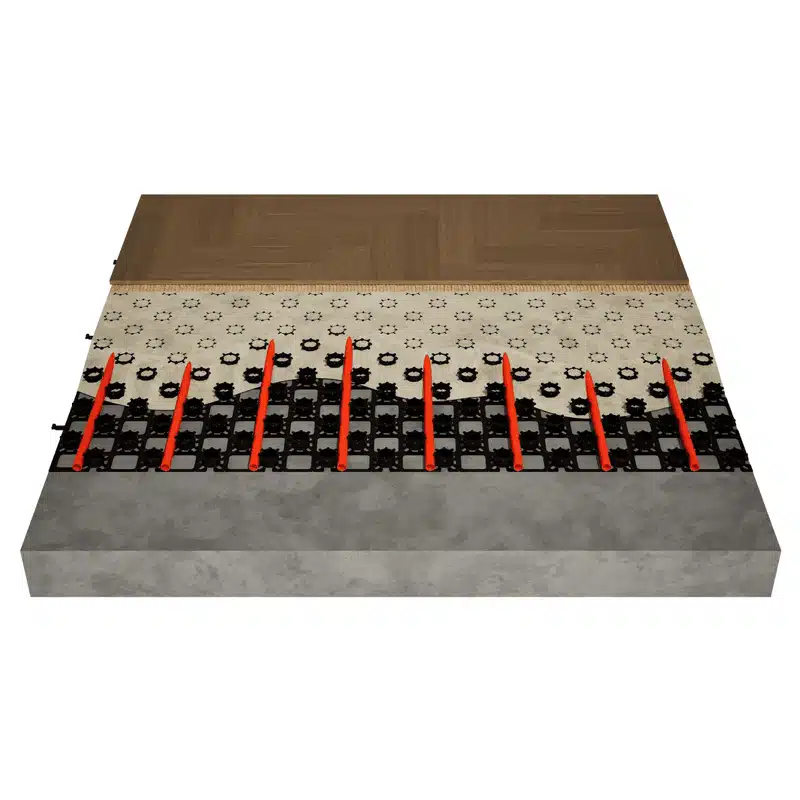

Integrated retention clips hold pipes firmly in place, ensuring consistent spacing and optimal heat transfer throughout the floor. Self-adhesive backing and interlocking edges make installation quick, accurate and secure — with pipe spacing options from 50mm for tailored heat distribution. Each panel supports both serpentine and snail pipe layouts.

• High Heat Output
• Self Adhesive
• Interlocking System
• Variable Pipe Spacing Options from 50mm
• 12mm pipe
• Low Profile: 16mm
• Panel Size: 1200 x 600mm
