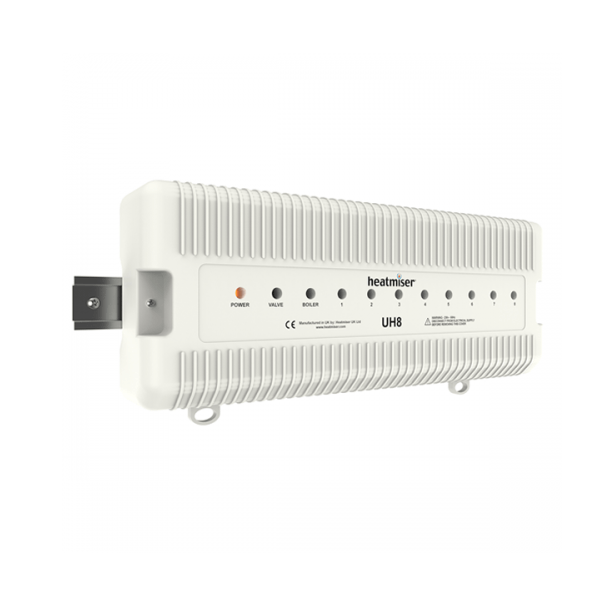

Heatmiser UH8 – 8 Zone 230v Wiring Centre

1 review

£63.06 (inc.VAT)

The Heatmiser UH8 – 8 Zone 230v Wiring Centre is designed to work with our 4 channel 230v time clock (TM4) and 230v Set back thermostat (DS-SB) but equally could be used with any 230v room thermostat including NeoStats, NeoStat-HW, Heatmiser Slimline V2 or Touch V2.

Download ManualDownload Data Sheet

VPS Underfloor Heating

  • Check Mark Secure Payments
  • Check Mark No Hassle Returns Policy
  • Check Mark Trade Customers Welcome
PAY WITH CONFIDENCE
  • Visa Card
  • MasterCard
  • PayPal
EAN: 5055538912757 SKU: UH8 Category: Tag:

Heatmiser UH8 – 8 Zone 230v Wiring Centre

The Heatmiser UH8 – 8 Zone 230v Wiring Centre is designed to work with our 4 channel 230v time clock (TM4) and 230v Set back thermostat (DS-SB) but equally could be used with any 230v room thermostat including NeoStats, NeoStat-HW, Heatmiser Slimline V2 or Touch V2.

Up to 8 zones can be controlled from the UH8. On board the UH8 are two heating time channels, each zone allows you to specify which time channel it should follow.

Two additional time channel connections are provided for hot water control or other auxiliary devices. On demand from any zone, a 230v output is provided to switch the relevant zone actuator, underfloor heating pump and valve. A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.

A simple slide switch makes zone 8 suitable for controlling a radiator zone. When used for controlling radiators, zone 8 does not enable the underfloor heating pump, valve and boiler.Up to 4 actuators can be connected to each zone.

  • Dimensions (LxHxD) 384x148x60mm

Download ManualDownload Data Sheet
