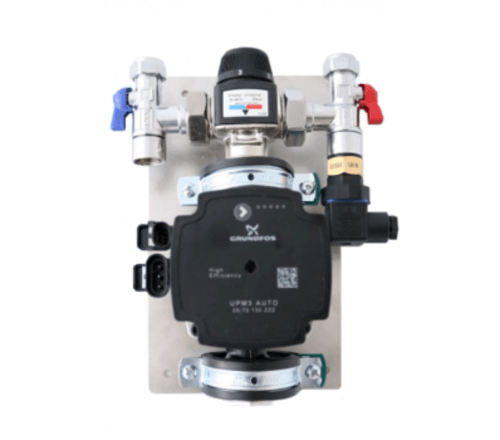

Grundfos Single Circuit Pump Pack w/ ESBE Mixing Valve Unit

£251.48 (inc.VAT)

Grundfos/ESBE Pump mixer packs are designed for control of flow and water temperature in an Underfloor Heating System.

VPS Underfloor Heating

  • Check Mark Secure Payments
  • Check Mark No Hassle Returns Policy
  • Check Mark Trade Customers Welcome
PAY WITH CONFIDENCE
  • Visa Card
  • MasterCard
  • PayPal

Grundfos/ESBE Pump mixer packs are designed for control of flow and water temperature in a UFH system. It is pre-assembled and tested to ensure that it can be fitted with the minimum of on-site labour and commissioned immediately once fitted.

The temperature switch to supply power to the pump will remain open until the existing heating system water is above 40°c, then the switch will close switching on the pump which will allow the TMV to mix flow and return to the required UFH temperature.

A Grundfos A-rated Pump + ESBE Mixer Set Blending Valve Thermostatic control the flow temperature of water to the underfloor heating pipe.

  • Single zone
  • ESBE 35-60 UFH thermostatic mixing valve c/w built-in bypass, made in Sweden
  • Compact design with wall mounting plate
  • Built in primary isolation valves
  • 1.5 kv, (5kw ouput)
  • Fitted temperature switch (40°C)
  • Pre-wired pump terminal box
  • Pre-tested, pre-packaged and pre-built for instant install, assembled in the UK
  • Grundfos UPM3 25-70 130 pump
  • 2 year warranty

ESBE Valves are the industry leading solution for control of your underfloor heating. Designed and made in Sweden since 1906, ESBE valves guarantee quality and performance for your underfloor heating system at it’s very core. Easily control the flow and temperature within the underfloor heating system to ensure it works optimally at any temperature between 30°c and 70°c depending on what is required. The desired temperature can be set with the easily hand-adjustable knob.

When you are looking at alternative non-branded products you may want to consider the lack of evidence based technical data available for such a key component!
