Home » Complete Wet Underfloor Heating Kits » Complete Wet Underfloor Heating Kits – 100mm Pipe Spacing

Complete Wet Underfloor Heating Kits – 100mm Pipe Spacing

From: Original price was: £520.69.Current price is: £410.32. (inc.VAT)

Click to see what's included in our kits?

Kits are based on 100mm pipe centres. Please call us on 0141 459 3141 if you would like a bespoke kit.

VPS Underfloor Heating

  • Check Mark Secure Payments
  • Check Mark No Hassle Returns Policy
  • Check Mark Trade Customers Welcome
PAY WITH CONFIDENCE
  • Visa Card
  • MasterCard
  • PayPal

Complete Wet Underfloor Heating Kits

SizePipe (m)Manifold Ports16mm EuroconesManifold Control Pack60mm Pipe Clips25m Edge InsulationPipe CuttersReaming ToolInstallation ManualPrice inc. VAT
20m2200
2
4
1
400
1
1
1
1
£410.32
30m2300
3
6
1
600
1
1
1
1
£478.52
40m2400
4
8
1
800
2
1
1
1
£556.14
50m2500
5
10
1
1000
2
1
1
1
£616.98
60m2600
6
12
1
1200
2
1
1
1
£685.28
70m2700
7
14
1
1400
2
1
1
1
£753.49
80m2800
8
16
1
1600
2
1
1
1
£875.11
90m2900
9
18
1
1800
3
1
1
1
£957.92
100m21000
10
20
1
2000
3
1
1
1
£1,080.32
110m21100
11
22
1
2200
4
1
1
1
£1,167.68
120m21200
12
24
1
2400
4
1
1
1
£1,244.52

Our complete wet underfloor heating kits (single zone) contains everything required to install an underfloor heating solution to your chosen floor area.

These packs are only suitable for floor areas where one zone (thermostat) control is required.

The underfloor heating kits have sufficient pipe supply for the specified floor area, based upon 100mm pipe centres, assuming the manifold is centrally located.

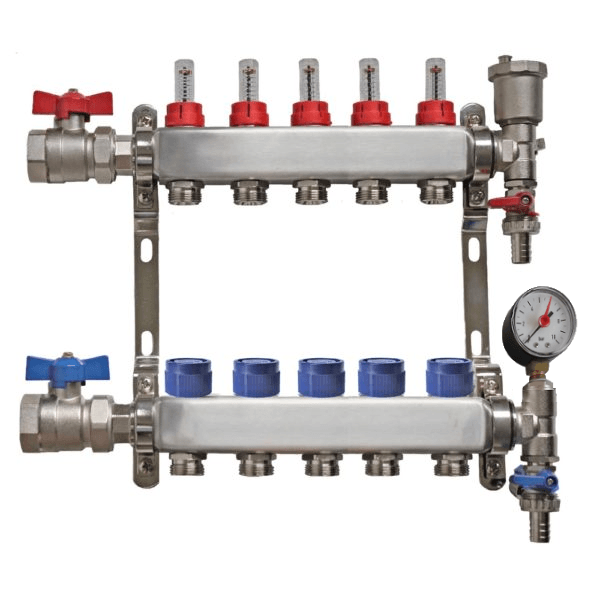

Manifolds are pre-assembled and include isolating ball valves, adjustable flow meters, fill and drain points, automatic air vents and pipe connectors for 16mm pipe.

Each pack includes the following:

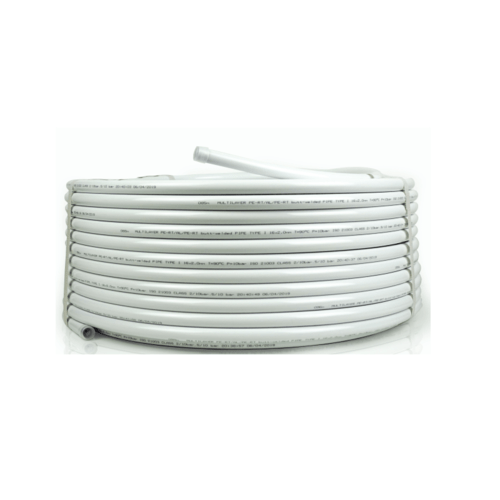

• 16mm PEX-AL-PEX pipe

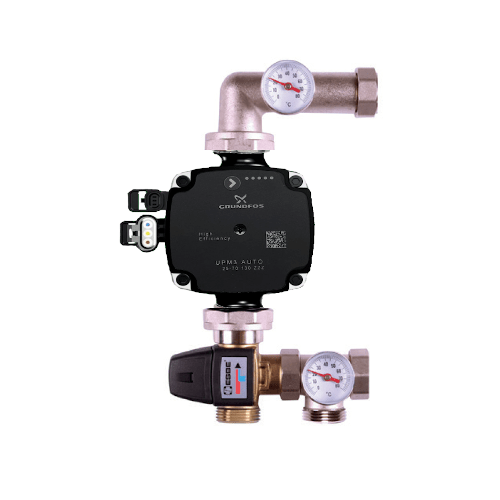

• Manifold control pack (Grundfos A rated pump, ESBE VTA 372 blending/mixing valves )
• Underfloor Heating manifold & pipe connectors

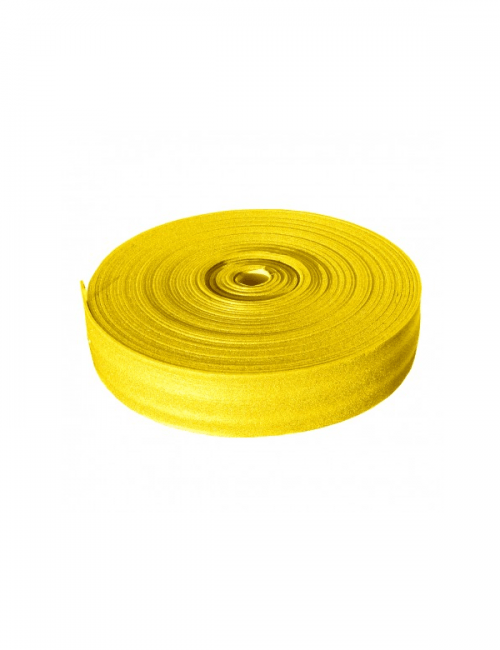

• Edge insulation
• Pipe staples
• Installation Manual

VPS is distributor of under floor heating pipe, manifolds, components and fittings. We carefully select the best components we can with an emphasis on quality value for money and customer service.

We have identified a select group of  manufacturers of under floor heating pipe, manifolds, circulation pumps, insulation panels, press fittings and accessories.

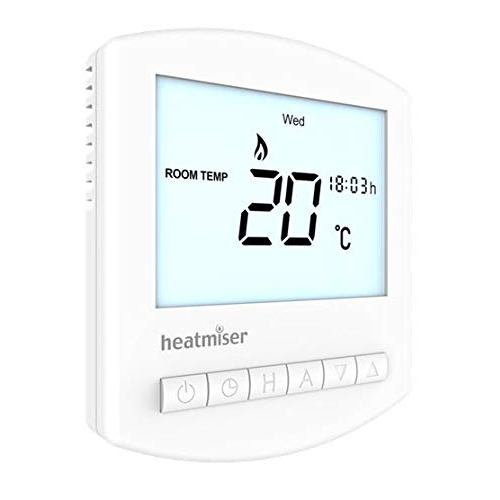

Thermostats

No Thermostat Required £0.00, Heatmiser DS1 V2 – £15.51, Heatmiser DS1-L – £22.00, Heatmiser Slimline V4 – £39.58, Heatmiser Slimline RF Kit – £62.27, Heatmiser Neostat White – £40.63, Heatmiser Neostat Black – £57.75, Heatmiser Neostat Silver – £57.75, Heatmiser Neostat WiFi White – £72.08, Heatmiser Neostat WiFi Black – £72.08, Salus SQ610RF Quantum – £45.00, Salus SQ610 Quantum – £43.33, Prowarm Protouch Wifi White – £87.16, Prowarm Protouch Wifi Black – £87.16
